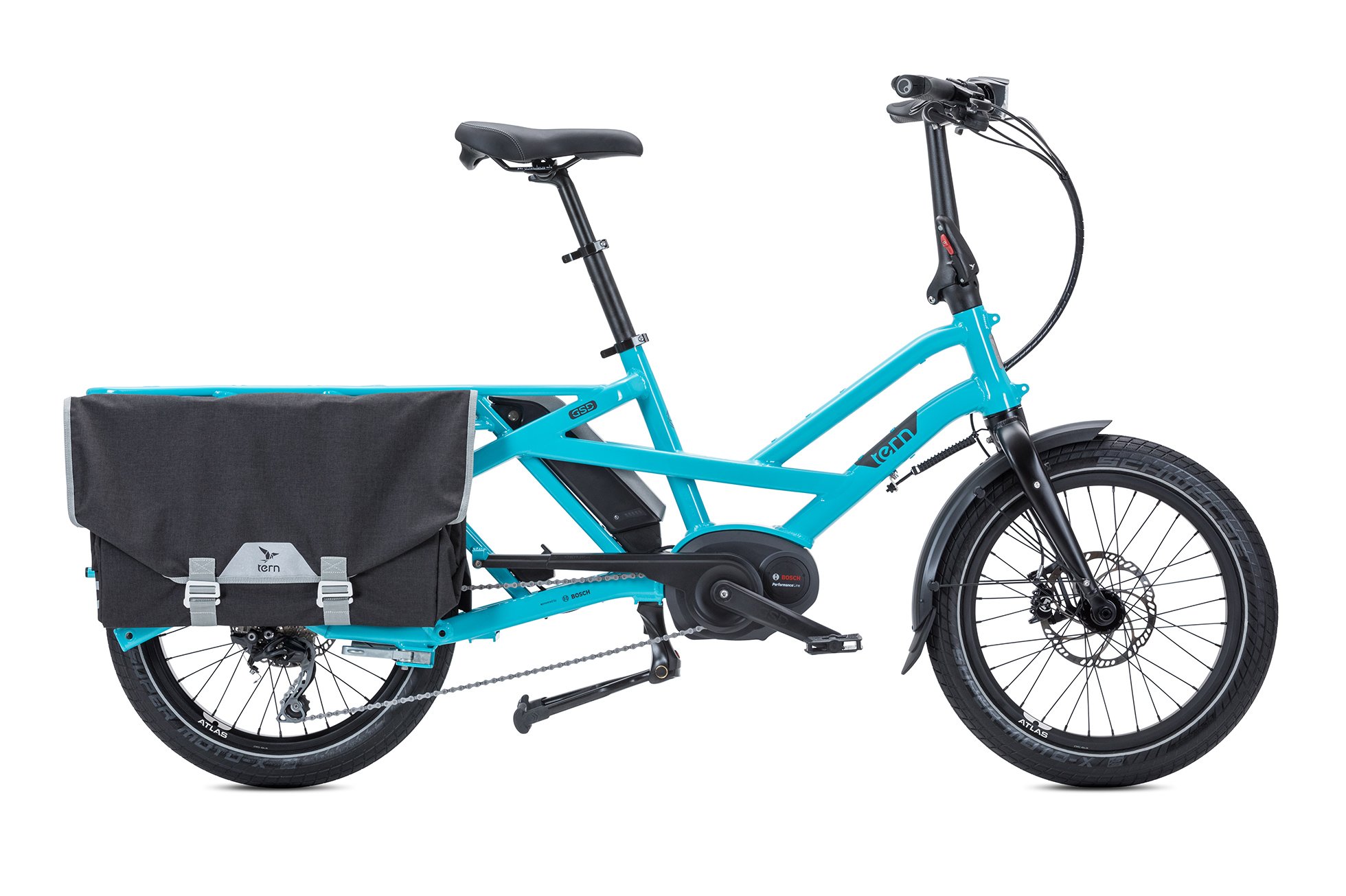

Tern GSD Gen 1 Parts List
There have been several iterations and minor updates to the GSD Gen 1 over the years. For example, the freehub changed. Put everything you know in the comments!
Cockpit
- Handlebar – Low riser, 31.8, 6061-AL
- Headset – 1-1/8 to 1.5 Tapered Fork, w/ Star Nut Set
- Handlepost & Stem – Andros stem, black
- Seatpost – 31.6 mm
- Seatpost Clamp – 30.9 & 34.9mm
Brakes
- Front Brake – Magura MT5, 2 finger lever, 1000mm hose, PM160-180 Adapter
- Rear Brake – Magura MT5, 2 finger lever, 1850mm hose, PM160-180 Adapter
- Rotors – Magura 6-bolt 180mm
Wheels
- Freehub Body – Made by Formula. I believe there are two versions
- Front Wheel – 32H, OLD 110mm. Tern Atlas 36 rim 110mm wide
- Rear Wheel - 32H, OLD 148mm
- Rear Axle - 177mm, M12
- Spokes (Front) – Drive: 173 mm, Non-Drive: 172 mm, 13G
- Spokes (Rear) – Drive: 172 mm, Non-Drive: 173 mm, 13G
- Nipples – 13 mm, 13G
- Tires – Schwalbe Super Moto-X GreenGuard, 62-406, 20x2.4
Drivetrain
- Chainring – 20T (A.04010.0005.00.14)
- Crank Arms – 170 mm (A.04011.0005.03.04)
- Chain – 10 speed, 138 links
- Rear Cassette – Shimano Deore HG50-10 11-36T
- Rear Derailleur – Shimano Deore M6000 GS, 10-speed Direct
- Shifter – Shimano Deore M6000-R Rear 10-Speed (Housing 2050mm)
- Rear Derailleur Hanger – A.07004.0059.00.00
- Pedals – Standard
- Chain Guard – Chainblade A.02031.0002.00.00
- Chain Guide Pulley – Chain Guide Pulley (F.07004.0017.00.00)
Bells & Whistles
- Rear Rack – Atlas Q Rear Rack (F.05004.0006.03.12)
- Kickstand – Ursus Mooi Rear 40 mm, L=245 mm (F.02017.0020.03.00)
- Front Light – Herrmans, MR4 (A.05005.0038.03.00)
- Bosch Light Cable (Front) – 1400 mm (1270.020.322)
- Bosch Light Cable (Rear) – 1400 mm (1270.020.324)
- Speed Sensor Cable – Bosch, 615 mm
- Rack Plug – A.02009.0009.03.00
- Mudguards – 20" A.05002.0089.00.00
