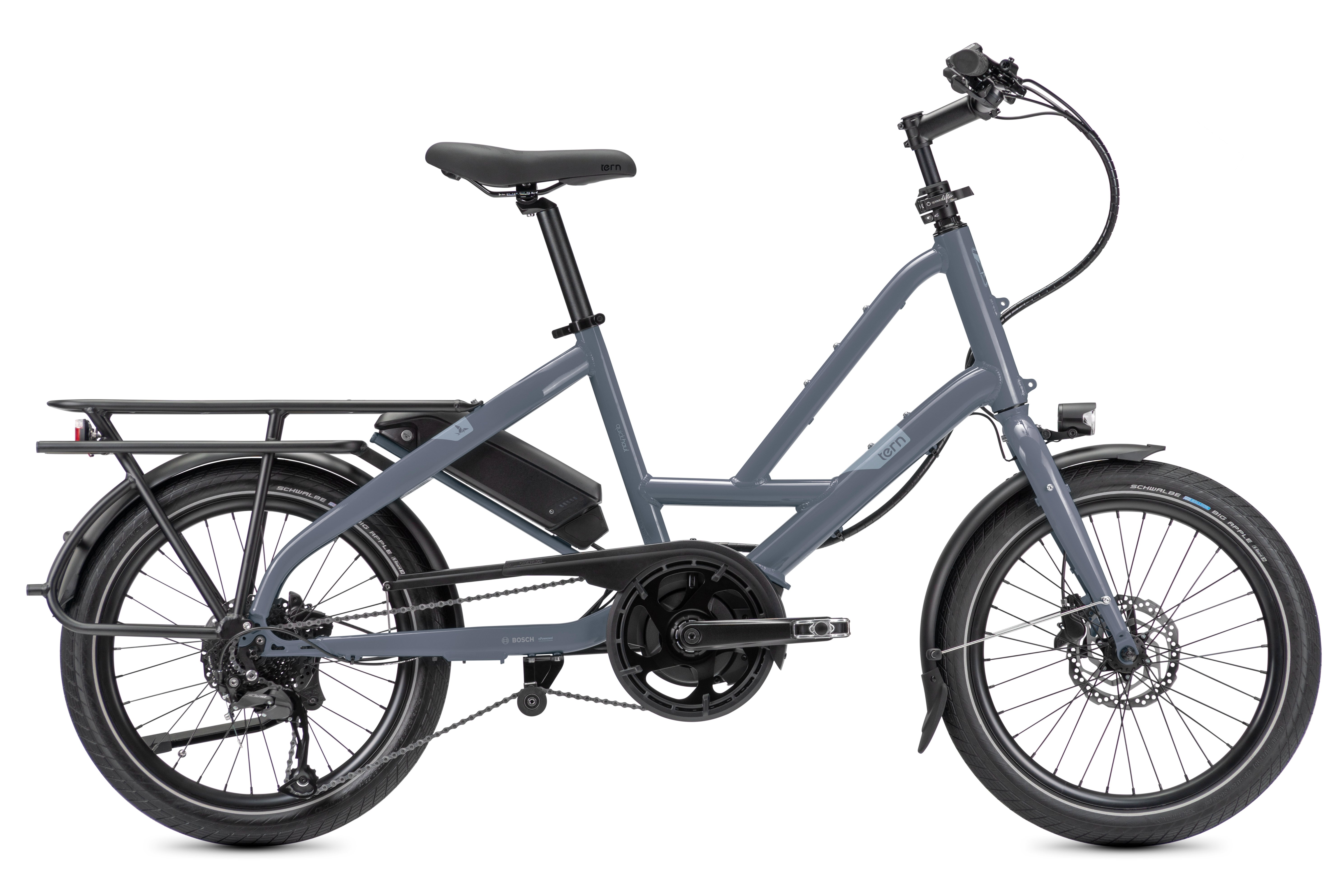

This is a rundown of all valuable tips and specs for the Tern Quick Haul Cargo Bike
Tern Quick Haul D8 Parts List
Tern Quick Haul P9 Parts List
Tern Quick Haul D8 Parts List
Tern Quick Haul P9 Parts List
Tern Quick Haul D8 Parts List
Frame & Fork
- Frame – Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg / 330 lb
- Fork – Cargo, steel, EFBE approved: 150 kg / 330 lb
Cockpit
- Handlebar – Low riser, 31.8, 6061-AL
- Headset – Cartridge Bearings, 1-1/8", Black (A.02010.0031.00.00)
- Stem – Speedlifter, 150 mm extension, 3D Forged stem, 31.8mm
- Seatpost – 31.6 mm
- Seatpost Clamp –
Brakes
- Front Brake – Shimano, ALTUS, BL-MT200L, BR-MT200F, DISC BRAKE ASSEMBLED SET, BLACK, SM-MA-F160P/S, RESIN PADW/O FIN, 1000MM HOSESM-BH59-SS
- Rear Brake – Shimano, ALTUS, BL-MT200R, BR-MT200R, Disc Brake Assembled Set, SM-MA-R160P/S, Resin Pad w/o fin, 1700 mm Hose SM-BH59-SS
- Rotors – Shimano, Center Lock, 160 mm
Wheels
- Cassette Body –
- Front Wheel – Shimano, HB-QC300, 32H,OLD:100 mm, center lock rotor, Quick Release
- Rear Wheel - Shimano, FH-QC300-HM,32H, OLD:135 mm, center lock rotor, Bolt On
- Spokes (Front) – Drive: 186 mm, Non-Drive: 185 mm, 14G
- Spokes (Rear) – Drive: 185 mm, Non-Drive: 186 mm, 14G
- Nipples – 14 mm, 14G
- Tires – Schwalbe Big Apple K-Guard, 55-406, 20 x 2.15
Drivetrain
- Chainring – 52T (A.04010.0026.00.00)
- Crank Arms – 170 mm (A.04011.0008.00.00)
- Chain – KMC e8S, 8-Speed, 140 Links
- Rear Cassette – Shimano, CS-HG31, 8-speed, 11-34T
- Rear Derailleur – Shimano, ALTUS RD-M2000, 9-speed
- Shifter – Shimano ALTUS SL-M315-8R, 8-speed, Rapidfire plus
- Rear Derailleur Hanger – F.00002.0077.03.00
- Pedals – Standard
- Chain Guard – Chainblade, Quick Haul, 52T, Black (F.02031.0100.03.00)
- Chain Guard Stay (small metal rod) – A.07004.0081.00.00
- Chain Stay Protector – Quick Haul Long (A.05009.0041.00.00)
- Chain Guide Bracket & Pulley – Chain Guide Pulley (set), for HSD, Short/Quick Haul (F.07004.0017.00.00)
- Chain Guide Pulley – Chain Guide Pulley (F.07004.0017.00.00)
Bells & Whistles
- Rear Rack – Atlas Q Rear Rack (F.05004.0006.03.12)
- Kickstand – Ursus Mooi Rear 40 mm, L=245 mm (F.02017.0020.03.00)
- Front Light – Herrmans, MR4 (A.05005.0038.03.00)
- Bosch Light Cable (Front) – 1400 mm (1270.020.322)
- Bosch Light Cable (Rear) – 1400 mm (1270.020.324)
- Speed Sensor Cable – Bosch, 815 mm (1270.020.803)
- Rack Plug – GSD, HSD, NBD, Vektron (A.02009.0009.03.00)
- Mudguards – 20" (F.05002.0012.03.00)
Tern Quick Haul P9 Sport
Frame & Fork
- Frame – Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg / 330 lb
- Fork – Cargo, steel, EFBE approved: 150 kg / 330 lb
Cockpit
- Handlebar – Low riser, 31.8, 6061-AL
- Headset – Cartridge Bearings, 1-1/8", Black (A.02010.0031.00.00)
- Stem – Speedlifter, 150 mm extension, 3D Forged stem, 31.8mm
- Seatpost – 31.6 mm
- Seatpost Clamp –
Brakes
- Front Brake – Shimano ALTUS, BL-MT200L, BR-MT200F, DISC BRAKE ASSEMBLED SET, BLACK, SM-MA-F160P/S, RESIN PADW/O FIN, 1000MM HOSE SM-BH59-SS
- Rear Brake – Shimano ALTUS, BL-MT200R, BR-MT200R, Disc Brake Assembled Set, SM-MA-R160P/S, Resin Pad w/o fin, 1700 mm Hose SM-BH59-SS
- Rotors – Shimano, Center Lock, 160 mm
Wheels
- Cassette Body –
- Front Wheel – Shimano, HB-QC300, 32H,OLD:100 mm, center lock rotor, Quick Release
- Rear Wheel - Shimano, FH-QC300-HM,32H, OLD:135 mm, center lock rotor, Bolt On
- Spokes (Front) – Drive: 186 mm, Non-Drive: 185 mm, 14G
- Spokes (Rear) – Drive: 185 mm, Non-Drive: 186 mm, 14G
- Nipples – 14 mm, 14G
- Tires – Schwalbe Big Apple K-Guard, 55-406, 20 x 2.15
Drivetrain
- Chainring – 52T (A.04010.0026.00.00)
- Crank Arms – 170 mm (A.04011.0008.00.00)
- Chain – KMC, e9S, 9 Speed, 140 Link
- Cassette – Shimano, ACERA, 9 Speed, 11-32T
- Rear Derailleur – Shimano, Alivio, RD-M3100, SGS, 9-Speed
- Shifter – Shimano Alivio SL-M3100-R, Right, 9-Speed, Rapidfire Plus
- Rear Derailleur Hanger – F.00002.0077.03.00
- Pedals – Standard
- Chain Guard – Chainblade, Quick Haul, 52T, Black (F.02031.0100.03.00)
- Chain Guard Stay (small metal rod) – A.07004.0081.00.00
- Chain Stay Protector – Quick Haul Long (A.05009.0041.00.00)
- Chain Guide Bracket & Pulley – Chain Guide Pulley (set), for HSD, Short/Quick Haul (F.07004.0017.00.00)
- Chain Guide Pulley – Chain Guide Pulley (F.07004.0017.00.00)
Bells & Whistles
- Rear Rack – Atlas Q Rear Rack (F.05004.0006.03.12)
- Kickstand – Ursus Mooi Rear 40 mm, L=245 mm (F.02017.0020.03.00)
- Front Light – Herrmans, MR4 (A.05005.0038.03.00)
- Bosch Light Cable (Front) – 1400 mm (1270.020.322)
- Bosch Light Cable (Rear) – 1400 mm (1270.020.324)
- Speed Sensor Cable – Bosch, 815 mm (1270.020.803)
- Rack Plug – GSD, HSD, NBD, Vektron (A.02009.0009.03.00)
- Mudguards – 20" (F.05002.0012.03.00)
